FC-UV4060

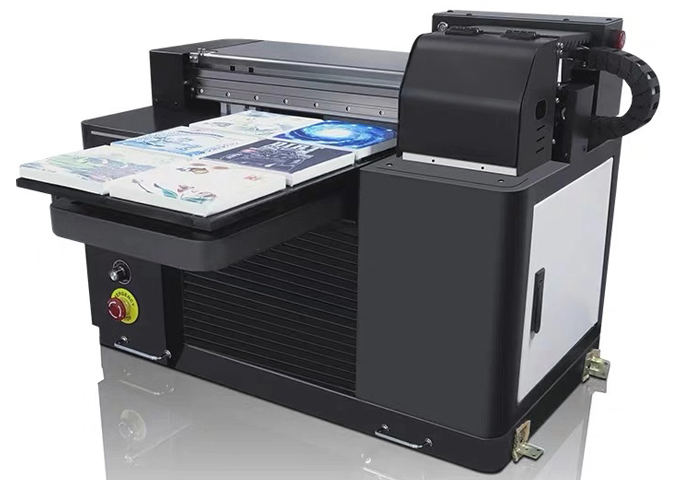

FC-UV4060 UV-LED Direct to Substrate Printer

Freecolor's FC-UV4060 is our hot sale multifunctional printer ! This new technology combine UV curable inks and a built-in UV-LED lamp to produce vibrant full color and textured imprints that cure rock-solid on a huge variety of substrates, including dark and clear materials!

· Shipping crate has casters, making it easy to roll into position. After unloading the printer, simply apply the brakes and you have a perfect-sized platform to hold your printer.

· Handles on all 4 sides make the printer easily movable for 2 people.

· Bulk ink system. Fits back side of machine for storage.

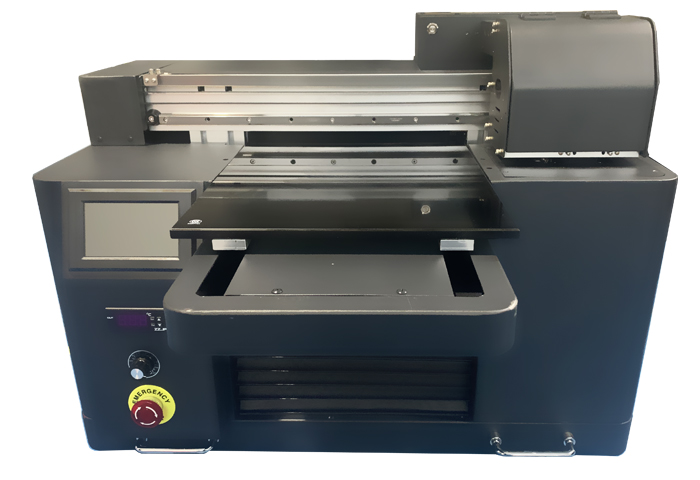

· The screen panel control puts all functions at your finger-tips including: manual flatbed height adjust, auto-height adjust; move bed backward and forward; perform head-cleanings.

· Easy access to perform maintenance and/or repair parts without disassembling printer to get inside.

· Flatbed is open at the back and front, allowing oversized products to be loaded, and products can be accessed during print runs for loading and unloading.



Printer Model
FC-UV4060
Print head
1 pieces Epson TX800 head or DX7 head or DX5 head
Ink
CMYK + W
Print Speed
1-3 square meter per hour
Print Size
30x50cm max.
Print Height
20cm max.
Rotary Device
Optional
Print Resolution
720x1080 / 720x1440 / 720x2160 dpi
RIP Software
Maintop 6.0 or Photoprint 12
Cleaning System
Auto Cleaning System
White Ciculation System
Yes
Ink Supply System
Open Bulk Tank With Ink Lack Alarm Device
Printer Dimension
800x850x570mm
Computer System Requirement
Windows 7 / 10 64bit
Connection Port
USB 2.0 /3.0
Cooling System
Water Circulation Cooling
Motor Brand
Leadshine Servo


This new ink system includes 6 channels - 4 channels for the full color CMYK inks plus 2 channels for White ink. or upgrade to channels - 4 channels for CMYK and 4 channel for white ink.

Bulk Ink System
Each ink color omes in a 250 mL ink tank The bulk ink delivery system reduces the need for ink refills and maintenance and provides an uninterrupted ink flow. Simply add the ink into empty ink and you are ready to continue printing. No cartridge filling or cleaning necessary! Our ink produces little to no fumes, so costly ventilation systems are unnecessary, One set of ink will print up to 50,000 square inches!

White Ink with Circultion System
The introduction of white ink allows you to print directly onto dark and clear materials. You can print solid white imprints, or use it as an opaque base for color imprints. The printer comes with 2 white channels assigned, but can be configured with more, giving you control over the amount of white ink that is applied to your products. It can also be printed as a gradient under photographs, giving you white highlights where you need them.

Ink Lack Alarm System

Equipped with ink lack alarm system to remind you to fill ink when ink near finish.

Freecolor's FC-UV4060 has a large imprint area of 12”W x 22”L x 8”H. The built-in automatic height sensor will detect products and position the flatbed so they are at an optimum distance (2mm) from the print head to maintain the highest quality imprints possible.


Our repositionable tray fixtures make it easy to print on products of varying shapes and materials. Simply lift off one tray and slide in a new one to change from one product to another. Print speed for a full print run ranges from 2 mins (text imprint) to 10 mins (full color coverage). The built-in UV-LED lamp cures the inks instantly as they are printed for rock-solid, durable imprints on metal, glass, wood, stone, plastic, fabric, vinyl and MUCH more!

Freecolor offers advanced Maintop RIP software ( also support Photoprint) and smart control print system, depending on your business' needs. Some of the features included in software include:

· Pre-loaded settings for various substrates

· Control over printer functions and channel settings

· Adjust ink density, saturation, and color controls

· White ink options – full background coverage / spot white

· Control dot size improve imprints on curved or uneven surfaces

· Support uni-directonal or Bi-directional print

· Allows you to add your own ICC color profiles to the RIP

· Allows you to create templates for product positioning

· Repeat Function allows you to copy artwork for multiple product prints

· Control dot size to improve imprints on curved or uneven surfaces

· Print settings: Uni-directional or Bi-directional

· Support 3D/Emboss effect

· Resolution settings:

   720x1440 – photography, fine detail

   720x2160 – photography, very fine detail, high quality, smooth substrates

Freecolor also offers customized ICC color profiling to improve the accuracy and consistency of color imprints from one substrate to another.


Freecolor offers remote training for you and your staff, and we will walk you through the installation of your new UV4060 printer. Freecolor offers a 1-YEAR WARRANTY on our UV4060 printer to give you peace of mind. We pride ourselves on our top notch technical support via telephone, email, live chat and skype video so you can reach us any time you have a question or run into difficulty.


Each printer is shipped with the following:

· 1 x INK SET 5 colors, 500mL each (C, M, Y, K, WHITE )and maintenance syringes ( for optional)

· 1 x Supply of cleaning solution for printer

· 1 x Screw Driver

· 2 x Spare Damper

· 1 x Spare Cap

· 1 x Manual

· 1 x USB installation disk for drivers and other videos

· 1 x  Maintop 6.0 RIP software

· 1 x Power Cables

· 1 x Remote Control with cable
