FC-UV4060 PLUS

Description

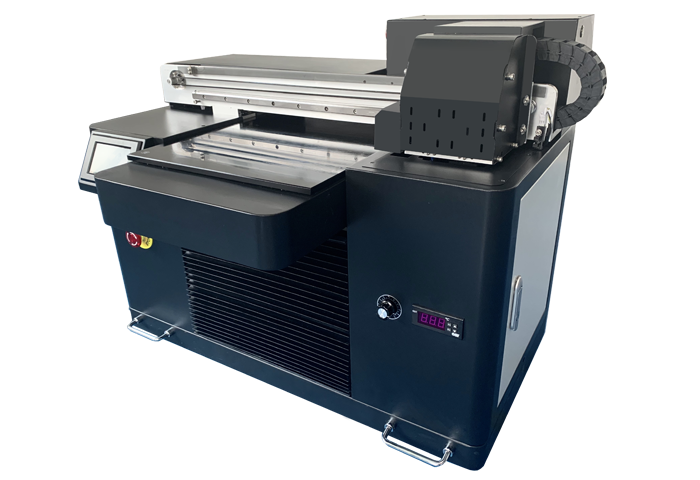

FC-UV4060 PLUS UV-LED Direct to Substrate Printer

Freecolor's FC-UV4060 PLUS is our upgraded multifunctional uv printer ! This new technology combine UV curable inks and a built-in UV-LED lamp to produce vibrant full color and textured imprints that cure rock-solid on a huge variety of substrates, including dark and clear materials!

Inquire Now

Physical Features

Ink Capabilities

Production Features

Software

Tech Support

With lead screw step instead of traditional belt step method to greatly increase the printing precision !

Equipped with touch screen to control the table and car move easily and do head cleaning.

Use milling aluminum girder instead of aluminium alloy profile to increase the precision and reduce noise.

Use milling aluminum support mode instead of aluminum profile to add the stability.

Add one aluminum mode on base support to make the printer more stronger.

Bulk ink supply system. Fits back side of machine for storage.

The remote control puts all functions at your finger-tips including: manual flatbed height adjust, auto-height adjust; move bed backward and forward; perform head-cleanings.

Easy access to perform maintenance and/or repair parts without disassembling printer to get inside.

Flatbed is open at the back and front, allowing oversized products to be loaded, and products can be accessed during print runs for loading and unloading.
Specification

Printer Model	FC-UV4060 PLUS
Print head	1 pieces Epson TX800 head or XP600 head or DX7 head or DX5 head
Ink	CMYK + W
Print Speed	1-3 square meter per hour
Print Size	32x55cm max.
Print Height	20cm max.
Rotary Device	Optional
Print Resolution	720x1080 / 720x1440 / 720x2160 dpi
RIP Software	Maintop 6.0 or Photoprint 12
Cleaning System	Auto Cleaning System
White Ciculation System	Yes
Ink Supply System	Open Bulk Tank With Ink Lack Alarm Device
Printer Dimension	800x950x600mm
Computer System Requirement	Windows 7 / 10 64bit
Connection Port	USB 2.0 /3.0
Cooling System	Water Circulation Cooling
Motor Brand	Leadshine Servo

This new ink system includes 6 channels - 4 channels for the full color CMYK inks plus 2 channels for White ink ( also can add to 4 channels for white ink)

Bulk Ink System
Each ink color omes in a 500 mL ink tank The bulk ink delivery system reduces the need for ink refills and maintenance and provides an uninterrupted ink flow. Simply add the ink into empty ink and you are ready to continue printing. No cartridge filling or cleaning necessary! Our ink produces little to no fumes, so costly ventilation systems are unnecessary, One set of ink will print up to 100,000 square inches!

White Ink with Circultion System
The introduction of white ink allows you to print directly onto dark and clear materials. You can print solid white imprints, or use it as an opaque base for color imprints. The printer comes with 2 white channels assigned, but can be configured with more, giving you control over the amount of white ink that is applied to your products. It can also be printed as a gradient under photographs, giving you white highlights where you need them.

Ink Lack Alarm System

Equipped with ink lack alarm system to remind you to fill ink when ink near finish.

Freecolor's FC-UV4060 Plus has a large imprint area of 12”W x 22”L x 8”H. The built-in automatic height sensor will detect products and position the flatbed so they are at an optimum distance (1-3mm) from the print head to maintain the highest quality imprints possible.

Application

Our repositionable tray fixtures make it easy to print on products of varying shapes and materials. Simply lift off one tray and slide in a new one to change from one product to another. Print speed for a full print run ranges from 40 seconds (only color) to 10 mins ( emboss effect ). The built-in UV-LED lamp cures the inks instantly as they are printed for rock-solid, durable imprints on metal, glass, wood, stone, plastic, fabric, vinyl and MUCH more!

Freecolor offers advanced Maintop RIP software and Print program, depending on your business' needs. Some of the features included in RIP software include:

Pre-loaded settings for various substrates

Control over printer functions and channel settings

Adjust ink density, saturation, and color controls

White ink options – full background coverage / spot white / color + white + color

Allows you to add your own ICC color profiles to the RIP

Allows you to create templates for product positioning

Repeat Function allows you to copy artwork for multiple product prints

Control dot size to improve imprints on curved or uneven surfaces

Print settings: Uni-directional or Bi-directional

Resolution settings:

720x1440 – photography, fine detail

720x2160 – photography, very fine detail, high quality, smooth substrates.

Freecolor also offers customized ICC color profiling to improve the accuracy and consistency of color imprints from one substrate to another.

Freecolor offers remote training for you and your staff, and we will walk you through the installation of your new FC-UV4060 PLUS uv printer. Freecolor offers a 1-YEAR WARRANTY on our FC-UV6090 PLUS uv printer to give you peace of mind. We pride ourselves on our top notch technical support via telephone, email, live chat and skype video so you can reach us any time you have a question or run into difficulty.

Include With Your Purchase :

· 1x Maintain injection syringe

· 1 x Screw Driver

· 1 x Spare Damper

· 1 x Spare Cap

· 1 x Manual (download file)

· 1 x Installation Video (Online Demo)

· 1 x Print Software ( download file)

· 1 x RIP software

· 1 x Power Cables

· 1 x USB Remote Control with cable

· 1 Year Limited Warranty

WHAT IS NOT INCLUDED BUT YOU MAYBE NEED:

· Inks ( Other Brand Inks is compatible, but Problems caused by the use of ink of other brands are not covered by this guarantee)

· Primer ( used to improve the ink adhesion on surface of special materials, such as glass, acrylic, metal etc )

· Cleaning solution

· Rotary device ( for bottle printing)

· Computer/Laptop with window 7 / 10 64bit system with an available USB port

REFUND, RETURN & REPAIR POLICY:

Printers must be return in new condition, unused and unopened for a refund or store credit within 30 days from the date of printer received (shipping is non-refundable). The customer is responsible for return shipping costs and all items need to be in the original package. Absolutely no returns are accepted from damages caused by carriers, in that case, the customer needs to open a claim direct with the cartier immediately.
About Machine Repair and Parts Replacment term, if the guarantied parts broken under the warranty , we could repair or replace new parts during warranty (the customer should send the old parts back during one week after receive the new parts ), The customer is responsible for the parts repair or replacement shipping cost.
