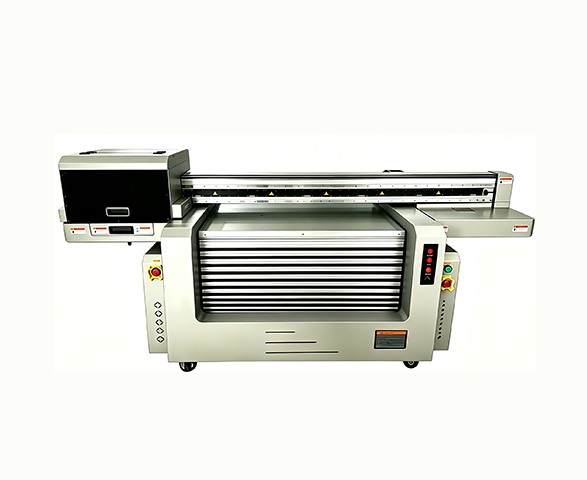

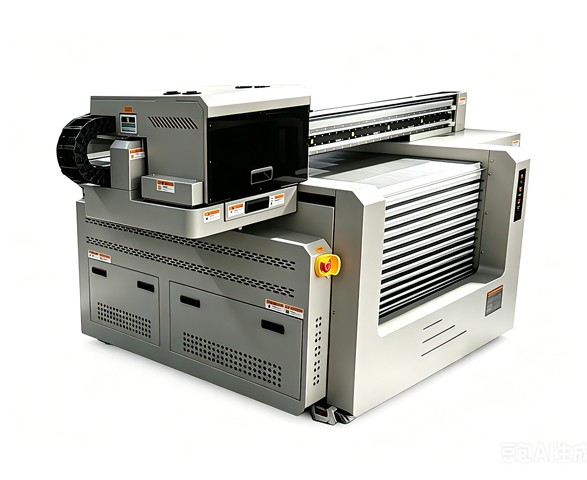

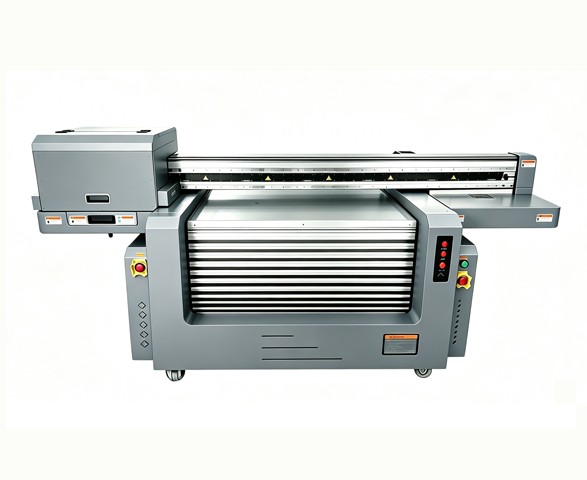

FC-UV9060HG

Freecolor FC-UV9060HG The Industrial Giant of High-Clearance UV Printing

In the world of UV printing, height has long been a barrier—until now. While standard industrial printers often cap out at 20cm, the FC-UV9060HG is engineered to shatter those limitations.Boasting an extraordinary 40cm (15.7 inches) Z-axis clearance, this machine is the ultimate solution for businesses that refuse to be boxed in. Whether you are printing on fully-formed,suitcases, large-format packaging boxes, deep industrial housings, or oversized custom trophies, the FC-UV9060HG handles them with ease and precision.

Inquire Now

Physical Features

Ink Capabilities

Production Features

Software

Tech Support

· Full steel structure body , Magnetic levitation Linear Servo Motor, Double THK silent guide rail design , aluminium alloy bed and machined surface plus milling parts.

· 1-3 pieces precision industrial print heads for maximum print speed and color

· 4 pieces UV-led lamp with water cooling sytem

· Curable imprint area of 90x60cm with 40cm (15.7 inch) height clearance

· Bulk ink supply with negative pressure system easily providing access for maintenance and ink replacement

· Built-in vacuum bed holds flat, lightweight substrates in place

· Y-axis dual lead screw strong stability

· Printer measures approx. 225 W x 150 L x 130 H (cm); Weighs approx. 500kg

· Shipping weight approx. 650kg/5.65CBM

Printer Model	FC-UV9060HG
Print head	1-3 pieces Ricoh Gen6 head or Epson i3200 head or Epson i1600 head
Ink	CMYK + White+Varnish or Dual CMYK + White+ Varnish or CMYK+White+CMYK
Print Speed	4-10 square meter per hour
Print Size	90x60cm max.
Print Height	40cm max.
Rotary Device	Optional
Print Resolution	720x600 / 720x900 / 720x1200dpi
RIP Software	Photoprint(SAi)
Cleaning System	Auto Cleaning System
White Ciculation System	Yes
Ink Supply System	Open Bulk Tank With Ink Lack Alarm Device and negative pressure system
Printer Dimension	2250x1500x1300mm
Computer System Requirement	Windows 7 / 10 /11 64bit
Connection Port	USB 2.0 /3.0
Cooling System	Water Circulation Cooling
Motor Brand	TAIWAN DORNA Servo

Bulk Ink with subtank negative pressure system

Each ink color omes in a 1500 mL ink tank The bulk ink delivery system reduces the need for ink refills and maintenance and provides an uninterrupted ink flow. Simply add the ink into empty ink and you are ready to continue printing. No cartridge filling or cleaning necessary! Our ink produces little to no fumes, so costly ventilation systems are unnecessary, One set of ink will print up to 100,000 square inches!

White Ink with Circultion System
The introduction of white ink allows you to print directly onto dark and clear materials. You can print solid white imprints, or use it as an opaque base for color imprints. The printer comes with 6 white channels assigned, giving you control over the amount of white ink that is applied to your products. It can also be printed as a gradient under photographs, giving you white highlights where you need them.

Varnish function
With varnish function bring you glossy and special 3D artistic effect

Ink Lack Alarm SystemEquipped with ink lack alarm system to remind you to fill ink when ink near finish.

Versatility Without Compromise

From personalized luggage to premium retail packaging, the FC-UV9060HG is the "First Choice" for diverse application needs:

Travel & Leisure: Direct-to-consumer customization of hard-shell suitcases.

Industrial Packaging: High-end gift boxes, wine crates, and oversized electronic enclosures.

Creative Displays: Custom-shaped signage and extra-thick acrylic awards.

Cylindrical Mastery: Optional rotary fixtures allow you to switch from flatbeds to high-end drinkware in minutes.

Freecolor offers advanced Photoprint (SAi/Flexi) and smart control print system, depending on your business' needs. Some of the features included in software include:

· Pre-loaded settings for various substrates

· Control over printer functions and channel settings

· Adjust ink density, saturation, and color controls

· White ink options – full background coverage / spot white

· Control dot size improve imprints on curved or uneven surfaces

· Support uni-directonal or Bi-directional print

· Allows you to add your own ICC color profiles to the RIP

· Allows you to create templates for product positioning

· Repeat Function allows you to copy artwork for multiple product prints

· Control dot size to improve imprints on curved or uneven surfaces

· Print settings: Uni-directional or Bi-directional

· Support 3D / Emboss artist effect

· Resolution settings

Freecolor also offers customized ICC color profiling to improve the accuracy and consistency of color imprints from one substrate to another.

Freecolor offers remote training for you and your staff, and we will walk you through the installation of your new FC-UV9060HG printer. Freecolor offers a 1-YEAR WARRANTY on our FC-UV9060HG printer to give you peace of mind. We pride ourselves on our top notch technical support via telephone, email, live chat and skype video so you can reach us any time you have a question or run into difficulty.

Include With Your Purchase :

· 1x Maintain injection syringe

· 1 x Screw Driver

· 1 x Manual (download file)

· 1 x Installation Video (Online Demo)

· 1 x Print Software ( download file)

· 1 x RIP software

· 1 x Power Cables

· 1 x USB Remote Control with cable

· 1 Year Limited Warranty

WHAT IS NOT INCLUDED BUT YOU MAYBE NEED:

· Inks ( Other Brand Inks is compatible, but Problems caused by the use of ink of other brands are not covered by this guarantee)

· Primer ( used to improve the ink adhesion on surface of special materials, such as glass, acrylic, metal etc )

· Cleaning solution

· Rotary device ( for bottle printing)

· Computer/Laptop with window 7 / 10 64bit system with an available USB port

REFUND,RETURN REPAIR POLICY:

· Printers must be return in new condition, unused and unopened for a refund or store credit within 30 days from the date of printer received (shipping is non-refundable). The customer is responsible for return shipping costs and all items need to be in the original package. Absolutely no returns are accepted from damages caused by carriers, in that case, the customer needs to open a claim direct with the cartier immediately.

· About Machine Repair and Parts Replacment term, if the guarantied parts broken under the warranty , we could repair or replace new parts during warranty (the customer should send the old parts back during one week after receive the new parts ), The customer is responsible for the parts repair or replacement shipping cost.
