FC-UV7010

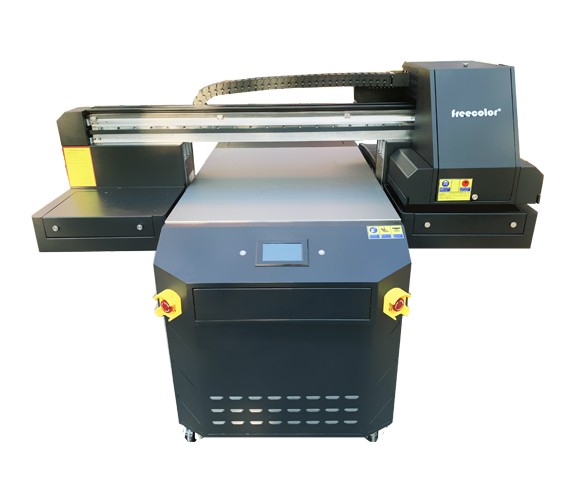

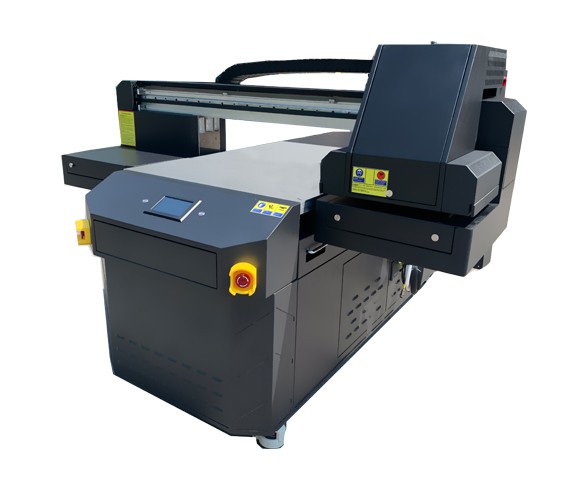

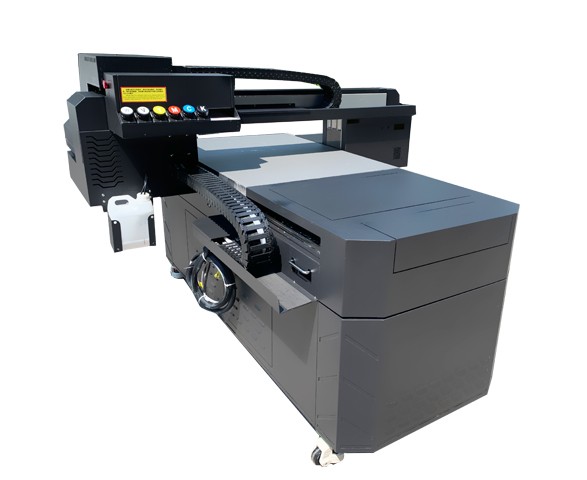

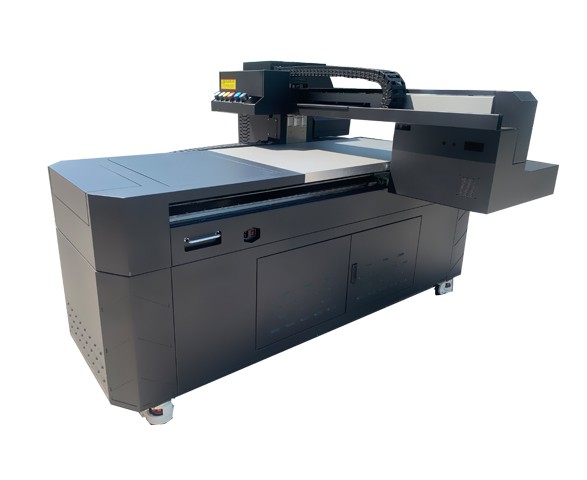

FC-UV7010 UV-LED Direct to Substrate Printer

Freecolor's FC-UV6090 Pro is our latest upgraded multifunctional printer ! the print size up to 70x100cm max. print speed increased twice than traditional printer, This new technology combine UV curable inks and varnish and a built-in UV-LED lamp to produce vibrant full color and textured imprints that cure rock-solid on a huge variety of substrates, including dark and clear materials!

· Shipping crate has casters, making it easy to roll into position. After unloading the printer, simply apply the brakes and you have a perfect-sized platform to hold your printer!

· The printer with open design which allow you to give maintenance to printer easily when you need to replace part in future.

· Bulk ink system. Fits back side of machine for storage.

· The screen control panel puts all functions at your finger-tips including: manual flatbed height adjust, auto-height adjust; move bed backward and forward; perform head-cleanings.

· Easy access to perform maintenance and/or repair parts without disassembling printer to get inside.

· Flatbed is open at the back and front, allowing oversized products to be loaded, and products can be accessed during print runs for loading and unloading.

· Full steel structure body , aluminium alloy bed and machined surface plus milling parts  Double lead screw step with servo motor

· 3 pieces precision print heads for maximum print speed and color

· 4 pieces UV-led lamp with water cooling sytem

· Curable imprint area of 70x100cm with 6 inch height clearance

· Bulk ink supply system easily providing access for maintenance and ink replacement

· Built-in vacuum bed holds flat, lightweight substrates in place

· Printer measures approx. 190cm W x 160cm L x 122cm H; Weighs approx. 400kg

· Shipping weight approx. 500kg/5CBM


Printer Model
FC-UV7010
Print head
3 pieces Epson TX800/XP600/DX5/DX7/i1600-U1/i3200-U1
Ink
Dual CMYK + 4*White +6*Varnish or CMYK LC LM+6*White+6*Varnish
Print Speed
3-12 square meter per hour
Print Size
70x100cm max.
Print Height
15cm max.
Table
Vacuum suction aluminum table
Rotary Device
Optional
Print Resolution
720x1080 / 720x1440 / 720x2160 dpi
RIP Software
Maintop 6.0 or Photoprint
Cleaning System
Auto Cleaning System
White Ciculation System
Yes
Ink Supply System
Open Bulk Tank With Ink Lack Alarm Device
Printer Dimension
1900x1600x1220mm / 400KG
Computer System Requirement
Windows 7 / 10 64bit
Connection Port
USB 2.0 /3.0
Cooling System
Water Circulation Cooling
Motor Brand
Leadshine Servo


This new ink system includes 3*6 channels - 8 channels for the dual CMYK inks plus 4 channels for White ink and 4 channel for Varnish.

Bulk Ink System
Each ink color omes in a 500 mL ink tank The bulk ink delivery system reduces the need for ink refills and maintenance and provides an uninterrupted ink flow. Simply add the ink into empty ink and you are ready to continue printing. No cartridge filling or cleaning necessary! Our ink produces little to no fumes, so costly ventilation systems are unnecessary, One set of ink will print up to 100,000 square inches!

White Ink with Circultion System
The introduction of white ink allows you to print directly onto dark and clear materials. You can print solid white imprints, or use it as an opaque base for color imprints. The printer comes with 4 white channels assigned, giving you control over the amount of white ink that is applied to your products. It can also be printed as a gradient under photographs, giving you white highlights where you need them.

Varnish Print Function
The Extra Varnish function allows you to get special print result, it support spot Varnish and Full Varnish print, it will make your printed job more vivid and wonderful.

Ink Lack Alarm System

Equipped with ink lack alarm system to remind you to fill ink when ink near finish.

Freecolor's FC-UV7010  has a large print area of 70cmW x 100cmL x 15cmH. The built-in automatic height sensor will detect products and position the flatbed so they are at an optimum distance (2mm) from the print head to maintain the highest quality imprints possible.


Our repositionable tray fixtures make it easy to print on products of varying shapes and materials. Simply lift off one tray and slide in a new one to change from one product to another. Print speed for a full print run ranges from 180 seconds ( CMYK print ) to 15 mins ( 3D Emboss ). The built-in UV-LED lamp cures the inks instantly as they are printed for rock-solid, durable imprints on metal, glass, wood, stone, plastic, fabric, vinyl and MUCH more!

Freecolor offers advanced Maintop RIP software ( also support Photoprint) and smart control print system, depending on your business' needs. Some of the features included in software include:

· Pre-loaded settings for various substrates

· Control over printer functions and channel settings

· Adjust ink density, saturation, and color controls

· White ink options – full background coverage / spot white

· Control dot size improve imprints on curved or uneven surfaces

·Support uni-directonal or Bi-directional print

· Allows you to add your own ICC color profiles to the RIP ( need purchase upgraded version)

· Allows you to create templates for product positioning

· Repeat Function allows you to copy artwork for multiple product prints

· Control dot size to improve imprints on curved or uneven surfaces

· Print settings: Uni-directional or Bi-directional

· Support 3D/Emboss effect

· Resolution settings:

  720x1080 – Standard quality

  720x1440 – photography, fine detail

  720x2160 – photography, very fine detail, high quality, smooth substrates

Freecolor also offers customized ICC color profiling to improve the accuracy and consistency of color imprints from one substrate to another.


Freecolor offers remote training for you and your staff, and we will walk you through the installation of your new FC-UV7010 printer. Freecolor offers a 1-YEAR WARRANTY on our FC-UV7010 printer to give you peace of mind. We pride ourselves on our top notch technical support via telephone, email, live chat and skype video so you can reach us any time you have a question or run into difficulty.


Include With Your Purchase :

· 1x Maintain injection syringe

· 1 x Screw Driver

· 1 x Spare Damper

· 1 x Spare Cap

· 1 x Manual (download file)

· 1 x Installation Video (Online Demo)

· 1 x Print Software ( download file)

· 1 x RIP software

· 1 x Power Cables

· 1 x USB Remote Control with cable

· 1 Year Limited Warranty


WHAT IS NOT INCLUDED BUT YOU MAYBE NEED:


· Inks ( Other Brand Inks is compatible, but Problems caused by the use of ink of other brands are not covered by this guarantee)

· Primer ( used to improve the ink adhesion on surface of special materials, such as glass, acrylic, metal etc )

· Cleaning solution

· Rotary device ( for bottle printing)

· Computer/Laptop with window 7 / 10 64bit system with an available USB port


REFUND, RETURN & REPAIR POLICY:


  1. Printers must be return in new condition, unused and unopened for a refund or store credit within 30 days from the date of printer received (shipping is non-refundable). The customer is responsible for return shipping costs and all items need to be in the original package. Absolutely no returns are accepted from damages caused by carriers, in that case, the customer needs to open a claim direct with the cartier immediately.


  2. About Machine Repair and Parts Replacment term,  if the guarantied parts broken under the warranty , we could repair or replace new parts during warranty (the customer should send the old parts back during one week after receive the new parts ), The customer is responsible for the parts repair or replacement shipping cost.
